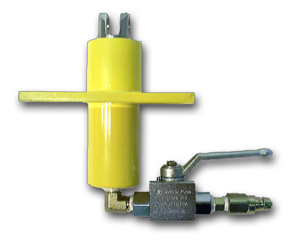

Product description

This is a device for which contacting force deterioration phenomenon caused by long-term use is improved through maintaining the contact surface of the cleaning member on the surface of the conveyor belt constantly and by bringing the cleaning member contact with the surface of the conveyor belt with uniform force.

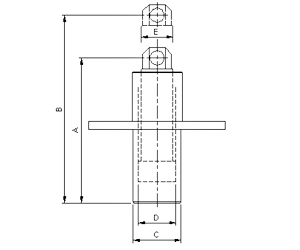

Product specification



Model
Cylinder
Capacity
(tons)
Stroke
(mm)
Cylinder
Effective
Area (§²)
Oil
Capacity
(cc)
Retracted
Height
Extended
Height
Cylinder
Out Dia.
Cylinder
Bore Dia.
Piston
Dia
Weight
(kgs)
A
B
C
D
E
SHP-1AB 2 70 10.2 71 138 208 48 36 30 2.5
