Product description

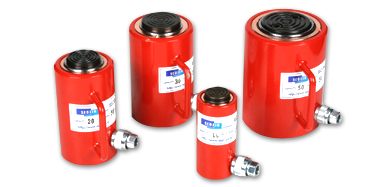

Single-acting cylinder is designed to be operated for all general purposed.
As the distance is adjusted by a hydraulic pump manually, electrically or by gasoline, or by air, it can be used easily at any place.

  • Single-acting, Spring return type
  • Installation of grooved saddle to prevent heavy objects from slipping
  • Stroke : 50 ~ 200mm
  • Capacity(tons) : 5 ~ 100 ton
  • Pressure used : 700 BAR
  • Coupler : 3/8" PT
  • Special cylinders can be custom-manufactured.
    		•
    Product specification
    Model
    Cylinder
    Capacity
    (tons)
    Stroke
    (mm)
    Cylinder
    Effective
    Area (§²)
    Oil
    Capacity
    (cc)
    Retracted
    Height
    Extended
    Height
    Cylinder
    Out Dia.
    Cylinder
    Bore Dia.
    Piston
    Dia
    Weight
    (kgs)
    A
    B
    C
    D
    E
    SS-55 5 50 6.38 35 133 183 38 28.5 25 1.1
    SS-510 100 70 183 283 1.4
    SS-515 150 106 233 383 1.8
    SS-520 200 140 283 483 2.2
    SS-105 10 50 15.2 76 130 180 58 44 38 2.0
    SS-1010 100 152 180 280 3.3
    SS-1015 150 228 230 380 4.7
    SS-1020 200 304 280 480 5.5
    SS-205 20 50 33.18 166 163 213 87 65 57 7
    SS-2010 100 332 213 313 8.8
    SS-2015 150 498 263 413 11
    SS-2020 200 664 313 513 12.7
    SS-305 30 50 44.18 220 170 220 102 75 68 9.8
    SS-3010 100 440 220 320 12.5
    SS-3015 150 660 270 420 16
    SS-3020 200 880 320 520 17.5
    SS-505 50 50 70.88 355 175 225 127 95 85 15.8
    SS-5010 100 710 225 325 20
    SS-5015 150 1070 275 425 23.5
    SS-5020 200 1425 325 525 27.7
    SS-1005 100 50 132.7 664 185 235 178 130 110 18
    SS-10010 100 1330 235 335 38.8
    SS-10015 150 1991 285 435 49.2
    SS-10020 200 2654 335 535 59.6
