Hydraulic punch
|
| Maximum punching diameter
▶ 31mm |

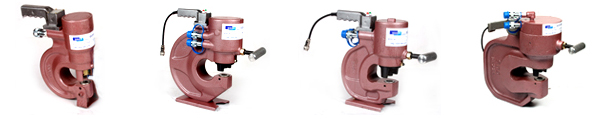

4 basic models |
| Maximum punching diameter
▶ 20mm |
Good portability being light and small.
The processed surface is clean and work efficiency is excellent |
Cylinder capacity
▶ 75 tons |
used for steel towel construction,
H-beam works, etc. |
|
 |
|
|
◎
SPUN-1020 |
◎
SPUN-1624 |
◎
SPUN-2024 |
◎
SPUN-2031 |
|
|
-
Capacity
: 32 ton, 47 ton, 60 ton
-
Maximum Punching Diameter
: 24
-
Maximum Pressure :
700 kgf/㎠
-
Punching through I-Beams,
H-Beams, Mild steel, etc
|
Product specification |
| Model |
Max. Punching
Diameter(φ) |
Max. Punching
Thickness (mm) |
Max. Punching
Depth (mm) |
Time For
1Hole (sec) |
Max. Punching
Capacity (ton) |
weight
(kg) |
SPUN-0816 |
16 |
8 |
70 |
6 |
20 |
8 |
SPUN-1022 |
22 |
10 |
70 |
6 |
32 |
13 |
SPUN-1224 |
24 |
12 |
70 |
8 |
35 |
15 |
SPUN-1624-07 |
24 |
16 |
70 |
5 |
47 |
21 |
SPUN-1624-11 |
24 |
16 |
110 |
5 |
47 |
28 |
SPUN-2024 |
24 |
20 |
110 |
6 |
60 |
34 |
SPUN-2031 |
31 |
20 |
110 |
6 |
75 |
75 |
|
|
|
|
|
|
