Hydraulic press
|
| ◎
Shop Press |
◎

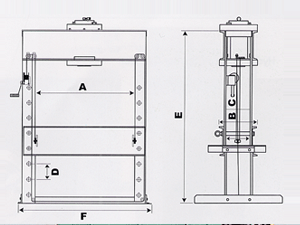

Shop Press drawings |
|
-
Capacity
: 20~ 100 ton
-
Maximum Pressure
: 700 kgf/㎠
-
When pulling and
pushing of bearings
gears, couplings, and assembling of
products
|
Product specification |
| Model |
Cylinder
(tons) |
Stroke
(mm) |
Dimension |
Weight
(kgs) |
Pump
|
| A
|
B
|
C
|
D
|
E
|
F
|
| SSPM-20 |
20 |
200 |
550 |
280 |
125 |
150 |
1630 |
848 |
180 |
|
| SSPM-30 |
30 |
200 |
640 |
335 |
150 |
150 |
1800 |
988 |
320 |
Hand
or |
| SSPM-50 |
50 |
200 |
850 |
360 |
175 |
150 |
2100 |
1268 |
530 |
Electric |
| SSPM-100 |
100 |
200 |
1000 |
445 |
250 |
150 |
2200 |
1468 |
940 |
|
|
|
|
|
|
|
