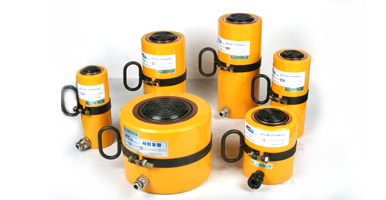

> Hydraulic cylinder



¡Ø You can see product photographs, drawings and site photographs by clicking on photographs
¡¡
Product description

Features: Easy to transport and carry as the weight is half the general steel cylinder and strong against salt

  • Single-acting, Spring return type

  • Stroke : 50 ~ 150mm

  • Capacity (ton) : 20 ~ 150 ton

  • Pressure used : 700bar

  • Coupler : 3/8" PT & 3/8" NPT
  • Special cylinders can be custom-manufactured.
    		•
    Product specification
    Model Cylinder
    Capacity
    (tons)    		 Stroke
    (mm)    		 Cylinder
    Effective
    Area (§²)    		 Oil
    Capacity
    (cc)    		 Retracted
    Height    		 Extended
    Height    		 Cylinder
    Out Dia.    		 Cylinder
    Bore Dia.    		 Piston
    Dia     		Base toInlet port
    		 Weight
    (kgs)
    A B C D E F
    SAR-2050 20 50 29 145 140 190 89 60 54 23.5 3
    SAR-20100 100 290 190 290 4
    SAR-20150 150 435 240 390 5
    SAR-3050 30 50 44 220 160 210 108 75 65 28.5 5
    SAR-30100 100 440 210 310 6.5
    SAR-30150 150 660 260 410 8
    SAR-5050 50 50 71 355 173 223 138 95 85 28 8
    SAR-50100 100 781 223 323 10.5
    SAR-50150 150 1070 273 423 15
    SAR-10050 100 50 132 660 190 240 187 130 110 40 16
    SAR-100100 100 1320 240 340 19.5
    SAR-100150 150 1980 290 440 23
    SAR-15050 150 50 201 1005 190 240 238 160 135 42 26.5
    SAR-150100 100 2010 240 340 33
    SAR-150150 150 3015 290 440 41
