> Hydraulic cylinder



¡Ø You can see product photographs, drawings and site photographs by clicking on photographs
¡¡
Product description

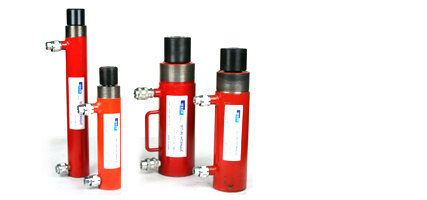

Double-acting cylinder is designed to operate in two directions by hydraulic pressure. It can be conveniently used for fast cycle work for which speed is required as the cylinder plunger is driven by hydraulic pressure and is especially useful for safe descending of a heavy object.

  • Use: Safe when used for descending of a heavy object
  • Double-acting, Hydraulic return type
  • Installation of grooved saddle to prevent heavy objects from slipping
  • Stroke : 150 ~ 300mm
  • Capacity (ton) : 5 ~ 1000 ton
  • Pressure used : 700 BAR
  • Coupler : 3/8" PT
  • Special cylinders can be custom-manufactured
    		•
    Product specification

    Model
    Cylinder
    Capacity
    (tons)
    Stroke
    (mm)
    Cylinder
    Effective
    Area (§²)
    Oil
    Capacity
    (cc)
    Retracted
    Height
    Extended
    Height
    Cylinder
    Out Dia.
    Cylinder
    Bore Dia.
    Coller Thread
    coller Thread Length
    Piston Thread
    Weight
    (kgs)
    A
    B
    C
    D
    E
    F
    G
    SDC-515 5 150 9.6 114 276 426 45 35 M45 X P1.5 25 M20XP1.5 3.3
    SDC-530 300 288 426 726 4.8
    SDC-1015 10 150 15 228 300 450 63 44 - - M28XP2.0 4.5
    SDC-1030 300 456 450 750 9
    SDC-2015 20 150 33.2 497.7 350 500 88 65 M85 X P2.5 40 M40XP2.0 13.5
    SDC-2030 300 995.5 500 650 20
    SDC-3015 30 150 44.2 662.6 390 540 105 75 M100 X P2.5 50 M50XP2.0 24
    SDC-3030 300 1325.2 540 840 33
    SDC-5015 50 150 70.8 1063 330 480 128 95 M127 X P2.5 45 M40XP2.0 30
    SDC-5030 300 2126 480 780 50
    SDC-10015 100 150 132.7 1990 350 500 177 130 M175 X P3.0 50 M65XP3.0 64
    SDC-10030 300 3980 500 800 83
    SDC-15015 150 150 213.8 3207 380 530 216 165 M215 X P4.0 60 M80XP4.0 104
    SDC-15030 300 6414 530 830 136
    SDC-20015 200 150 283.5 4253 430 580 241 190 M240 X P4.0 70 M85XP4.0 129
    SDC-20030 300 8506 580 880 169
    SDC-30015 300 150 433.7 6506 485 635 315 235 M310 X P4.0 80 M110XP4.0 230
    SDC-30030 300 13012 635 935 298
    SDC-50015 500 150 706.8 10603 480 630 410 30 M410 x P6.0 95 M120 x P6.0 490
    SDC-50030 300 21206 630 930 590
    SDC-80015 800 150 1164.2 17462 550 700 499 390 - - - 782
    SDC-80030 300 34924 700 1000 989
    SDC-100015 1000 150 1452.2 21783 610 760 560 430 - - - 1216
    SDC-100530 300 43566 760 1060 1533
