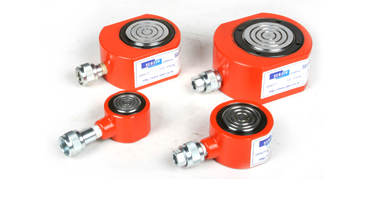

Product description
Use: Used to lift a heavy object a little in a very narrow space
  • Single-acting, Spring return type
  • Installation of grooved saddle to prevent heavy objects from slipping
  • Stroke : 11 ~ 16mm
  • Capacity : 10 ~ 150 ton
  • Pressure used : 700 BAR
  • Coupler : 3/8" PT
  • Special cylinders can be custom-manufactured
    		•
    Product specification
    Model Cylinder
    Capacity
    (tons)    		 Stroke
    (mm)    		 Cylinder
    Effective
    Area(§²)    		 Oil
    Capacity
    (cc)    		 Retracted
    Height    		 Extended
    Height    		 Cylinder
    Out Dia.    		 Cylinder
    Bore Dia.    		 Cylinder Dimension Weight
    (kgs)
    A B C D E
    SSLC-1011 10 11 14.4 16 45 56 85 44 56 1.5
    SSLC-2011 20 11 28.3 31 52 63 102 60 76 2.7
    SSLC-3013 30 13 41.85 53 59 72 115 73 95 4.2
    SSLC-5016 50 16 60.8 99 67 83 140 88 114 6.9
    SSLC-7516 75 16 103.87 164 79 95 165 114 140 11
    SSLC-10016
    		 100 16 126.7 203 86 102 180 127 152 14.7
    SSLC-15016
    		 150 16 201 317 100 116 215 160 190 25
