Hydraulic tools

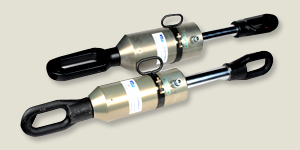

Pull cylinder
Product description

It is light being made of aluminum.

It is used for correction and fixing works of a twisted or bent structure like shipbuilding yard or plant using a pulling jack.

It is single-acting and spring return type but double-acting hydraulic type can be custom-manufactured.
  • Capacity ; 10 ~50 ton , 150mm Stroke
  • Pressure used : 700 BAR
  • Product specification
    Model
    Capacity
    (tons)
    Stroke
    (mm)

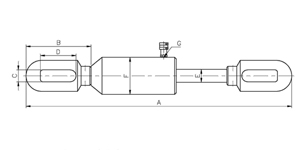

    Dimension
    Weight    (Kgs)
    A
    B
    C
    D
    E
    F
    G
    SAPT-10150
    10
    150
    763
    171
    30
    115
    40
    88
    PT 3/8"
    10.3
    SAPT-20150
    20
    150
    797
    215
    35
    120
    40
    108
    13.5
    SAPT-30150
    30
    150
    875
    226
    44
    110
    60
    133
    24
    SAPT-50150
    50
    150
    919
    248
    50
    150
    54
    158
    34
    SAPT-30200
    30
    200
    925
    226
    44
    120
    60
    133
    28.2
    SAPT-50200
    50
    200
    969
    248
    50
    150
    54
    158
    36
