Hydraulic pump



Hand pump (small size)
¡Ý [SHP-1A]

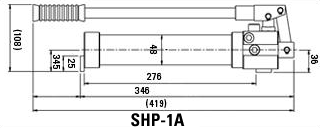

¡Ý [SHP-1A] Product drawings

¡Ý [SHP-1B]
¡Ý [SHP-1B] Product drawings

¡Ý [SHP-2A]

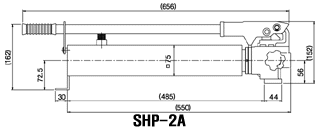

¡Ý [SHP-2A] Product drawings
¡¡
Product description
Hand pump 1A
It is the smallest and lightest pump which is used for punching machine, cable cutting and multi-acting cylinder for automobile or general metal plating works
Hand pump1B . 2A

It is one of the most popular pumps widely used in general industries. This automatic double pump has a peculiarity of supplying much amount of oil to ensure fast forward and backward movement.
It is designed to allow easy operation requiring less effort as the speed is automatically converted to double speed.??
The maximum pressure used is 700 bar.
The pump being equipped with 4 way valve can be used for multi-acting cylinders and double-acting cylinders.
In order to prevent overload during operation, pressure safety valve is installed inside the pump.

It is easy to transport or carry being small, light and compact
Product specification
Model Reservoir
Capacity
(cc)		 Volume per
Stroke (cc)		 Piston
Dia. (mm)		 Piston Stroke
(mm)		 Weight(kgs)
High
Pressure		 Low
Pressure		 High
Pressure		 Low
Pressure
SHP-1A 280 1 5 10 10 14.5 4
SHP-1B 800 2.3 13 12 28 20.5 6
SHP-2A 2000 2.3 13 12 28 7.3
