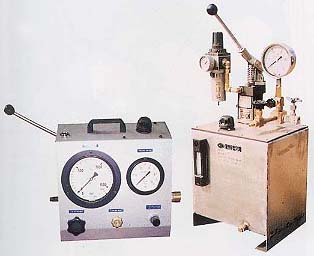

Hydraulic tester


1.5 HP

Normal pressure used to drive the air pump: 1-7kgf/㎠, maximum pressure: 10.5kgf/㎠
- Tank specification: 400L*300H*500W (Tank specification can be changed.)
- Fluid: oil, water, light oil, petroleum, liquid pumping possible

DHW-100T

DHW-60

DHB-300T


 * Specification

MODEL

OPTION

OIL WATER

OIL

maximum
pressure
(kgf/㎠)

normal
pressure
(kgf/㎠)

discharge
(ℓ/min)

  DHW-1.5T

  DHB-1.5T

10.5

1.5-7

98.3

  DHW-4T

  DHB-4T

42

4-28

36.8

  DHW-B10T

  DHB-B10T

110

10-70

20.5

  DHW-B15T

  DHB-B15T

172

15-105

13.1

  DHW-25T

  DHB-25T

276

25-175

8.19

  DHW-35T

  DHB-35T

390

35-245

5.3

  DHW-60T

  DHB-60T

630

60-420

2.8

  DHW-100T

  DHB-100T

1000

100-700

1.8

  DHW-150T

  DHB-150T

1570

150-1050

1.15

  DHW-225T

  DHB-225T

2360

225-1575

0.74

  DHW-300T

  DHB-300T

3150

300-2100

0.5



2.2 HP top

Normal pressure used to drive the air pump: 1-7kgf/㎠, maximum pressure: 10.5kgf/㎠
- Tank specification: 400L*300H*500W (Tank specification can be changed.)
- Fluid: oil, water, light oil, petroleum, liquid pumping possible

DHW-122T

DHB-100T DOUBLE ACTING CYLINDER


 * Specification

MODEL

OPTION

OIL WATER

OIL

maximum
pressure
(kgf/㎠)

normal
pressure
(kgf/㎠)

discharge
(ℓ/min)

  DHW-22T

  DHB-22T

230

22-154

14.7

  DHW-32T

  DHB-32T

330

32-224

9.83

  DHW-52T

  DHB-52T

550

52-364

5.74

  DHW-72T

  DHB-72T

758

72-364

4.1

  DHW-122T

  DHB-122T

1379

122-850

2.29

  DHW-202T

  DHB-202T

2200

202-1410

1.4

  DHW-302T

  DHB-302T

3447

302-2120

0.9

  DHW-452T

  DHB-452T

4826

452-3160

0.58

  DHW-602T

  DHB-602T

5170

602-4210

0.49

  DHW-683T

  DHB-63T

4826

683-4780

0.41

  DHW-903T

  DHB-903T

5170

903-6320

0.328

  DHW-1373T

  DHB-1373T

6895

1373-6800

0.15

1/3 HP top

- Tank specification: 3<00L*300H*350W (Tank size can be changed.)
- Normal pressure used to drive the air pump: 1-7kgf/㎠, maximum pressure: 8.5kgf/㎠
- Manual pump operation is possible. (custom-made specification)
- Fluid: oil, water, light oil, petroleum, liquid pumping possible



DHW-110T

DHW-71T

DHB-110T

DHW-21


 * Specification


MODEL

OPTION

OIL WATER

OIL

maximum
pressure
(kgf/㎠)

normal
pressure
(kgf/㎠)

discharge
(ℓ/min)

  DHW-5T

  DHB-5T

43

5-35

10.5

  DHW-7T

  DHB-7T

60

7-50

8.0

  DHW-12T

  DHB-12T

100

12-80

4.3

  DHW-21T

  DHB-21T

180

21-150

2.5

  DHW-36T

  DHB-36T

300

36-250

1.6

  DHW-71T

  DHB-71T

600

71-500

0.8

  DHW-110T

  DHB-110T

940

110-770

0.5

  DHW-188T

  DHB-188T

1600

188-1320

0.32

3/4 HP top

- Pressure used to drive the air pump: Maximum/7kgf/㎠ /
- Normal pressure used to drive the air pump:1-7kgf/㎠
- Tank specification can be changed.
- Fluid: oil, water, light oil, petroleum, liquid pumping possible


DHW-4B-21

DHW-4B-14


 * Specification


MODEL

사양

OIL WATER공용

최대압력
(kgf/㎠)

상용압력
(kgf/㎠)

토출량
(ℓ/min)

             DHW-4B-14T

100

14-90

8.2

             DHW-4B-21T

150

21-140

5.7

             DHW-4B-25T

180

25-170

4.9

             DHW-4B-30T

220

30-210

4.0

             DHW-4B-37T

265

37-260

3.28

             DHW-4B-55T

420

55-385

2.0

             DHW-4B-75T

550

75-525

1.64

             DHW-4B-100T

770

100-700

1.15

             DHW-4B-150T

1100

150-1000

0.8
